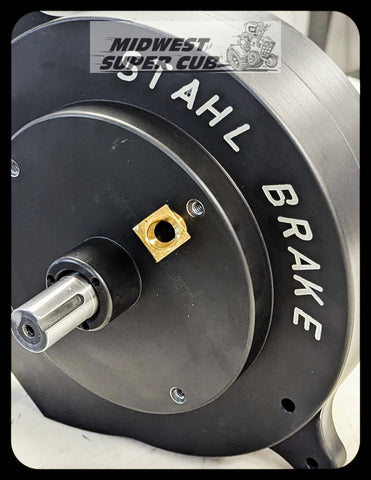

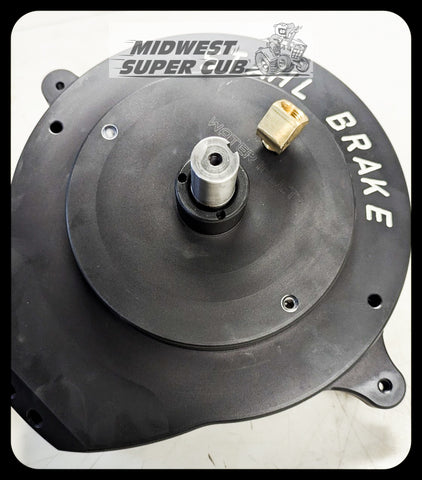

Stahl Brake

The Stahl Brake is a 150 HP water brake.  Features include

Billet aluminum constructions with a heat treated chrome moly input shaft with 1.00” diameter for hub.  Other features include a heavy duty o-ring to seal the two halves from leaking water and the shaft seal is a heavy duty clipper type seal that can withstand the pressures.  Water brake comes with two pillow block mounting bearings, ⅝” hose inlet and ½” vent hose outlet.  The bottom has left and right drain holes for either direction rotation.  The outlet fitting comes with four (4) different restrictors (3/16”, ¼”, 9/32” and 5/16”.

The water brake is compatible with the Stuska 90 Dyno

Priced at $3,400.00 which includes free shipping to the lower 48 states.
